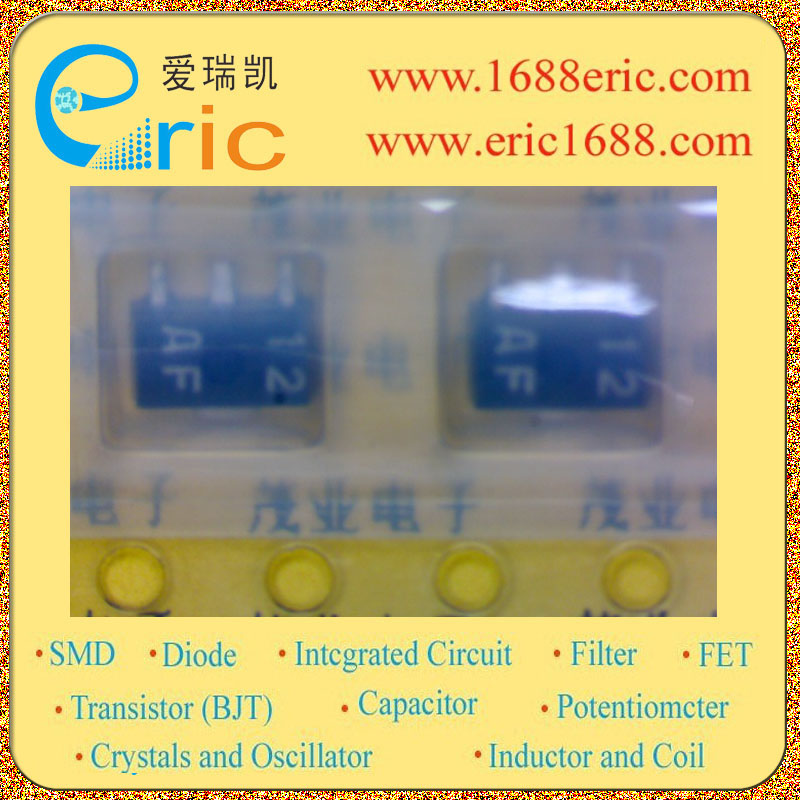

CR08AS-12-BT13 AF 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
400V |
| 通态平均电流IT(AV)
Average on-state current |
0.8A |
| 通态最大电流IT(RMS)
RMS on-state current |
1.26A |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
100μA |
| 保持电流IH
Holding current |
1.5mA |
| 峰值通态电压VTM
On-state voltage |
1.5V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
0.5mA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
10A |
| Description & Applications |
Surface Mount Type Glass Passivated Gate Trigger Current is Small Easy Application for Printed Circuits Solid State Relay Static Switches Ignitors Strobe Flasher |
| 描述与应用 |
表面贴装型 玻璃钝化 门极触发电流小 印制应用简易 电路 固态继电器 静态开关 触发器 频闪闪光器 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| BCR08AS-12A |
BX |
RENESAS |
05+ |
SOT-89 |
0 |
可控硅/晶闸管Triac/Thyristor,SCR-单向可控硅Thyristor,SCR |
查看 |
| BCR08AS-12A |
BX |
RENESAS |
06nopb |
SOT-89 |
0 |
可控硅/晶闸管Triac/Thyristor,SCR-单向可控硅Thyristor,SCR |
查看 |
| BCR08AS-12A |
BX |
RENESAS |
07+ROHS |
SOT-89 |
3000 |
可控硅/晶闸管Triac/Thyristor,SCR-单向可控硅Thyristor,SCR |
查看 |
| CR08AS-12-BT13 |
AF |
MITSUBISHI |
05+ |
SOT-89 |
200 |
可控硅/晶闸管Triac/Thyristor,SCR-单向可控硅Thyristor,SCR |
查看 |
| CR08AS-12-T13 |
AF |
RENESAS |
05+ROHS |
SOT-89 |
0 |
可控硅/晶闸管Triac/Thyristor,SCR-单向可控硅Thyristor,SCR |
查看 |
|
|
|
