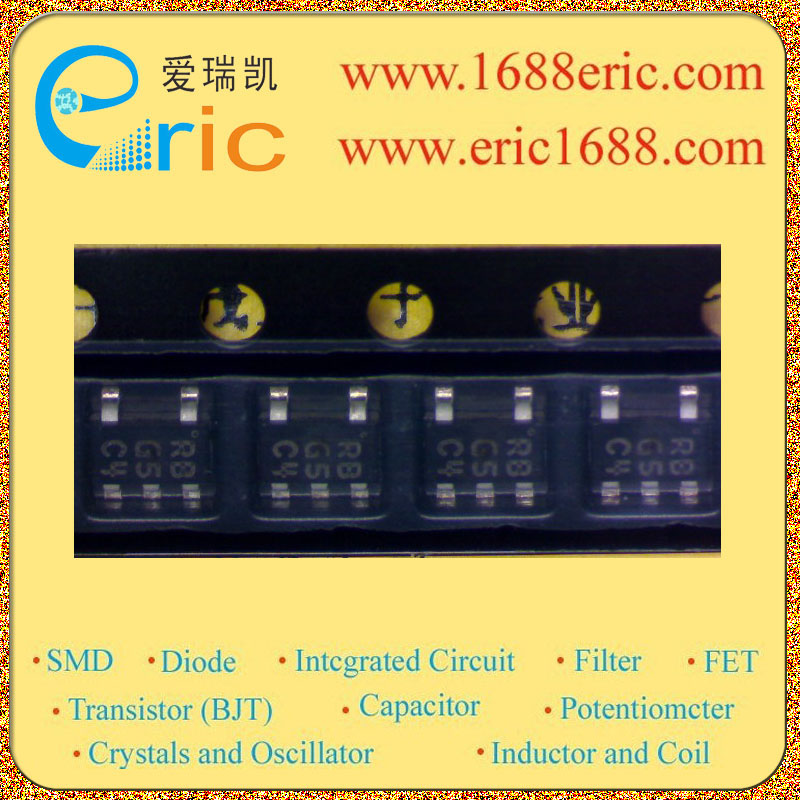

CPH5902G-TL-E RBG 的参数 |
| FET类型
Type |
JFET N-Channel |
| 最大源漏极电压Vds
Drain-Source Voltage |
15V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
-15V |
| 最大漏极电流Id
Drain Current |
50mA |
| 源漏极导通电阻Rds(on)
Drain-Source On-State Resistance |
|
| 跨导
Forward Transfer Admittance |
38ms@VDS=5V，VGS=0V，f=1kHz |
| IDSS(Vgs=0V) |
10mA~20mA@VDS=5V，VGS=0V |
| 开启电压Vgs（th）/关断电压Vgs（off）
Gate-Source Threshold/Cut-off Voltage |
-0.4V~-1.5V |
| BJT 类型
Type |
NPN |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
55V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
150mA/0.15A |
| 截止频率fT
Transtion Frequency(fT) |
200MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
135~400 |
| 耗散功率Pd
Power Dissipation |
850mW/0.85W |
| Description & Applications |
High frequency amplifier,AM amplifier ,low frequency apmlifier applications Features ? Composite type with J-FET and NPN transistor contained in the CPH5 package ，improving the mounting efficiency greatly. |
| 描述与应用 |
高频放大器，AM放大器，低频率的apmlifier应用 特点 ?复合型的J-FET和包含在CPH5封装的NPN晶体管，大大提高了安装效率。 |
