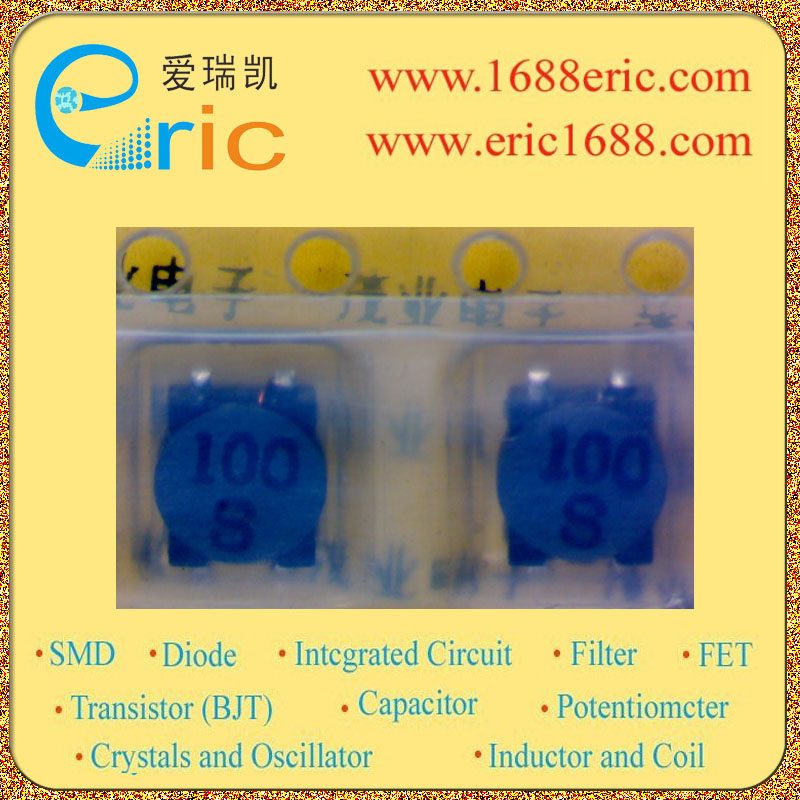

CMD4D13-100S
 型号:  CMD4D13-100S
 标记/丝印/代码/打字:
 厂家:  Sumida
 封装:  4M-100
 批号:  05+
 库存数量:  1000
 所属分类:  电感Inductor/Coil/Choke
  功率电感Power Inductor
 技术文档PDF:  在线阅读

 在线购买

CMD4D13-100S  的参数

Q值 Q Value
电感值 Inductance 10uH
误差 Tolerance ± 20%~50%
额定电流 Current Rating 710mA
饱和电流 Current - Saturation
DC电阻DCR DC Resistance (DCR) 0.335Ω/Ohm
Description & Applications ◆ Product Description ?5.8×4.4 mm Max.(L×W),1.45mm Max. Height. ?Inductance Range: 3.3~150μH. ?Rated current range: 130~850mA. ?4 Terminal pins’ type gives a flexible design as inductors or transformers(SEPIC,ZETA circuit). ?In addition to the standards versions used as power inductors shown here, custom designs as transformers(SEPIC,ZETA circuit) and inductors are also available. ◆ Feature ?Magnetically unshielded construction. ?Ideally used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC Converter inductors, specially suitable for White LED drive. ?RoHS Compliance.
描述与应用 ◆产品描述 ·5.8×4.4毫米(长×宽),最大1.45mm以下。身高。 ·电感值范围:3.3?150μH。 ·额定电流范围:130?850毫安。 ·4终端pins'类型给出了一个灵活的设计,电感或变压器(SEPIC,ZETA电路)。 ·除了用作功率电感在这里显示的标准版本,定制设计 变压器(SEPIC,ZETA电路)和电感器也可提供。 ◆特征 磁屏蔽的建设。 ·理想用于便携式设备,如手机,DSC/ DVC,MP3,PDA,DC-DC转换器,电感器,特别适用于白光LED驱动器等。 ·RoHS合规。
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
ACMD-3402 JAT 04+ SOT 200 未分类 查看
CMD4D13-100S Sumida 05+ 4M-100 1000 电感Inductor/Coil/Choke-功率电感Power Inductor 查看
CMD4D13-330MCHD SUMIDA 05+ 4M-330 2000 电感Inductor/Coil/Choke-功率电感Power Inductor 查看
CMDS40049.1 N203 California Micro Devices 03+ CSP-15 1000 未分类 查看
CMDSH2-3 S2 CENTRAL 07NOPB SOD323/SC-76/USC/0805 0 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
cmdsh2-3 s2 CENTRAL 07nopb SOD323/SC-76/USC/0805 0 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
CMDSH-3 S1 CENTRAL 05+ SOD323/SC-76/USC/0805 0 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
CMDSH-3 s1 CENTRAL 05+ SOD323/SC-76/USC/0805 0 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
CMD4D08-011 011 SUMIDA 05+ 4M-011 0 电感Inductor/Coil/Choke-其它Other 查看
CMD4D08-011 011 SUMIDA 05+ 4M-011 1000 电感Inductor/Coil/Choke 查看
