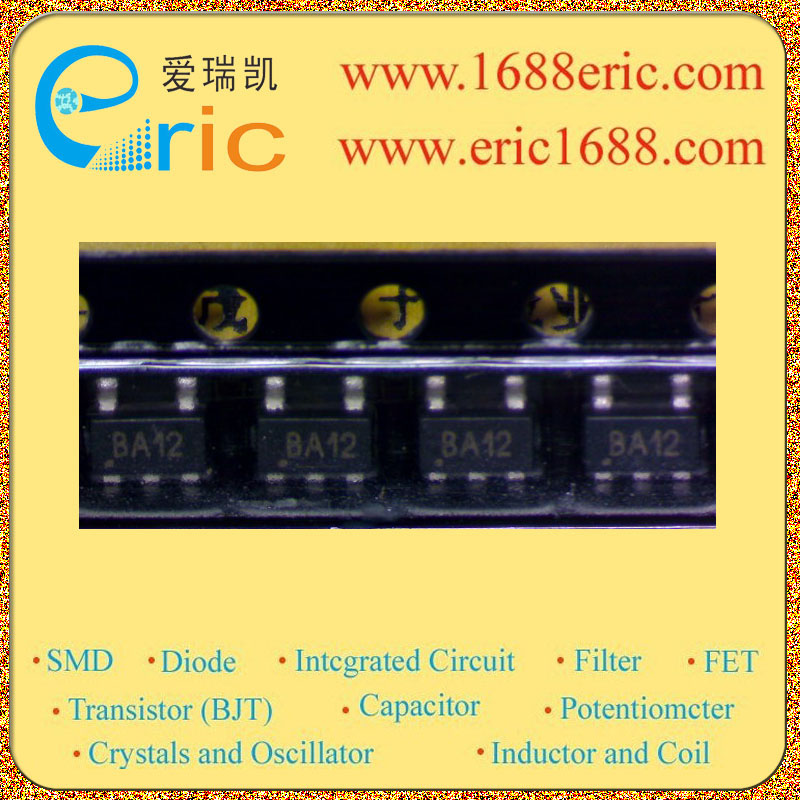

CM3102-12ST
 型号:  CM3102-12ST
 标记/丝印/代码/打字:  BA12
 厂家:  California Micro Devices
 封装:  SOT-153/SOT23-5
 批号:  05+
 库存数量:  3100
 所属分类:  电源管理ICPower Management IC/PMIC
  电压调整器/稳压Voltage Regulator
    低压差LDOLow Dropout (LDO)
 技术文档PDF:  在线阅读

 在线购买

CM3102-12ST BA12 的参数

电路数量 Number of Regulators 1
输入电压VIN Voltage - Input 2.7~5.5V
输出电压VOUT Voltage - Output 1.2V
输出电流Io Current - Output 150mA/0.15A
最大压降VDO Voltage - Dropout
带使能脚EN/CE(ON/OFF功能) With Enable Pin 有 Yes
最大耗散功率Pd Power dissipation
Description & Applications Micropower 1.2V/150mA CMOS LDO Regulator with Power Good;? Fast (60μs) VOUT response when enabled ? Ultra low noise (35μV rms typ.) ? Delivers up to 150mA output current ? Very low dropout (150mV at 150mA) ? Low quiescent operating current (110μA) ? Stable with low-ESR ceramic capacitors ? “Zero” disable mode current consumption ? Thermal overload protection ? Foldback overload current protection ? -40°C to +85°C temperature operation ? Available in a 5-pin SOT23 and 5-bump Chip Scale Packages (CSP) ? Lead-free versions available ? Wireless handsets, PDAs, MP3 players, digital cameras ? PCs and notebooks ? Graphics cards, set-top boxes ? Compact Flash memory cards ? Battery-powered devices ? PC cards
描述与应用 微1.2V/150mA CMOS LDO稳压器具有电源状态良好;?快速(60μS)VOUT ?启用时的响应 ?超低噪声(35μVRMS(典型值)。) ?提供高达150mA的输出电流 ?非常低压差(150mV的150mA时) ?低静态工作电流(110μA) ?稳定与低ESR陶瓷电容器 ?“零”禁用模式的电流消耗 ?热过载保护 ?折返过载电流保护 ?-40°C至+85°C温度操作 ?可在5引脚SOT23和5凸点芯片级 封装(CSP) ?无铅版本 ?无线手机,掌上电脑,MP3播放器,数码相机 ?PC和笔记本电脑 ?图形卡,机顶盒 ?紧凑型闪存卡 ?电池供电设备 ?PC卡
技术文档PDF下载 在线阅读
