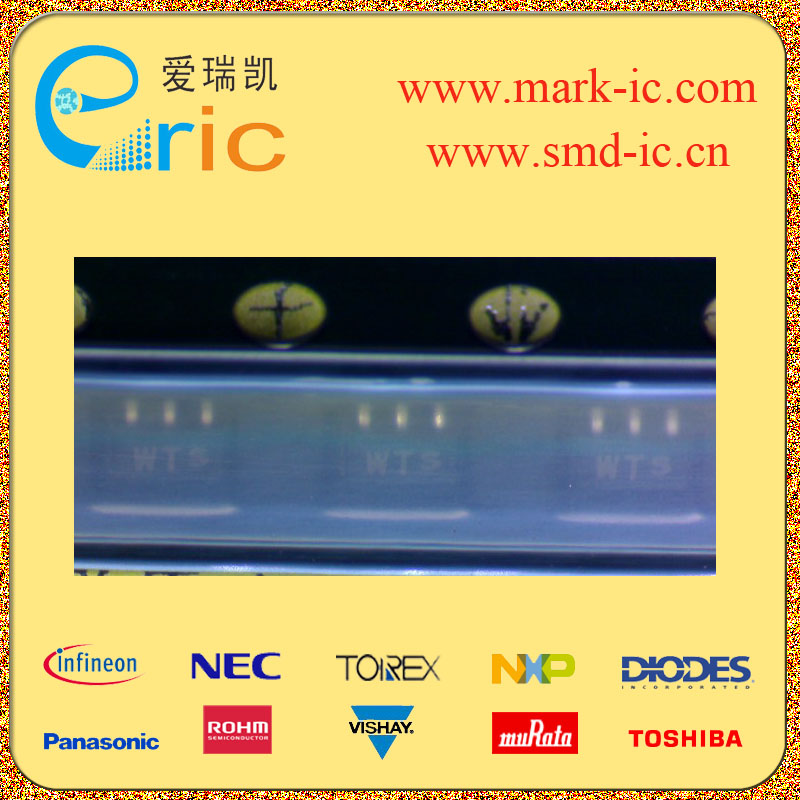

BCR48PN WT 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
70mA/-100mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
47KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
47KΩ/Ohm |
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
1 |
| Q2基极输入电阻R1
Input Resistance(R1) |
2.2KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
47KΩ/Ohm |
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
0.047 |
| 直流电流增益hFE
DC Current Gain(hFE) |
70 |
| 截止频率fT
Transtion Frequency(fT) |
100MHz |
| 耗散功率Pc
Power Dissipation |
250mW/0.25W |
| Description & Applications |
Features ?NPN/PNP Silicon Digital Transistor Array ?Switching circuit, inverter, interface circuit,driver circuit ?Two (galvanic) internal isolated NPN/PNPTransistors in one package ?Built in bias resistor NPN: R1= 47k , R2= 47k PNP: R1= 2.2k ,R2= 47k |
| 描述与应用 |
特点 ?NPN / PNP硅数字晶体管阵列 ?开关电路，逆变器，接口电路，驱动电路 ?（电流）的内部分离NPN/ PNPTransistors在一个包 ?内置偏置电阻 NPN: R1= 47k , R2= 47k PNP: R1= 2.2k , R2= 47k |
