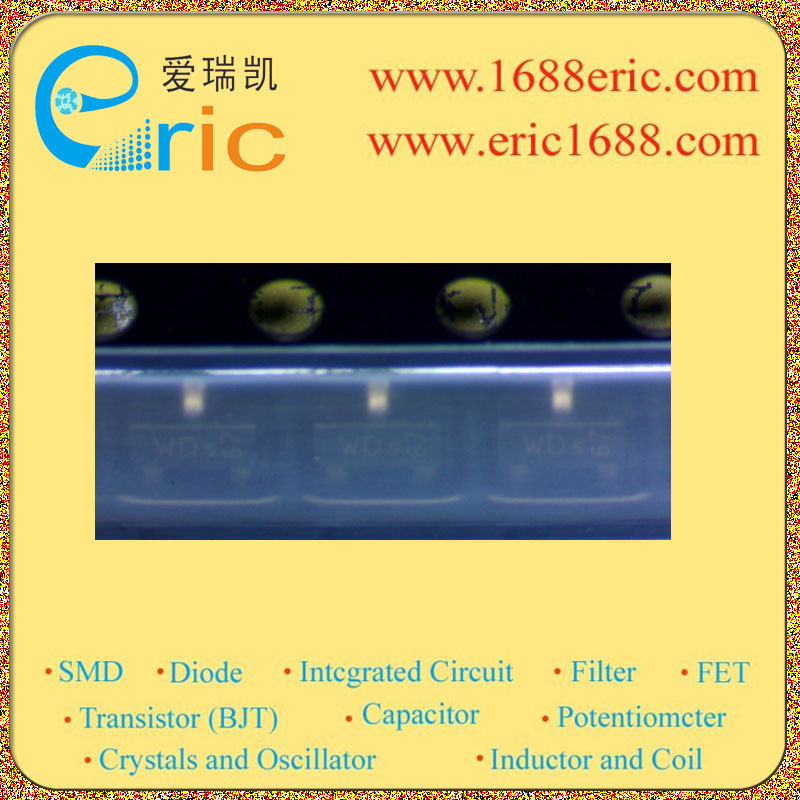

BCR141 WD 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
基极输入电阻R1
Input Resistance(R1) |
22KΩ/Ohm |
基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
22KΩ/Ohm |
电阻比(R1/R2)
Resistance Ratio |
1 |
直流电流增益hFE
DC Current Gain(hFE) |
50 |
截止频率fT
Transtion Frequency(fT) |
130MHz |
耗散功率Pc
Power Dissipation |
0.25W /250mW |
Description & Applications |
Features ? Switching circuit, inverter, interface circuit,driver circuit ? Built in resistor (R1=22k?,R2=22k?) |
描述与应用 |
特性 ?开关电路,逆变器,接口电路,驱动电路 ?内置电阻(R1=22kΩ,R2=22k?) |
