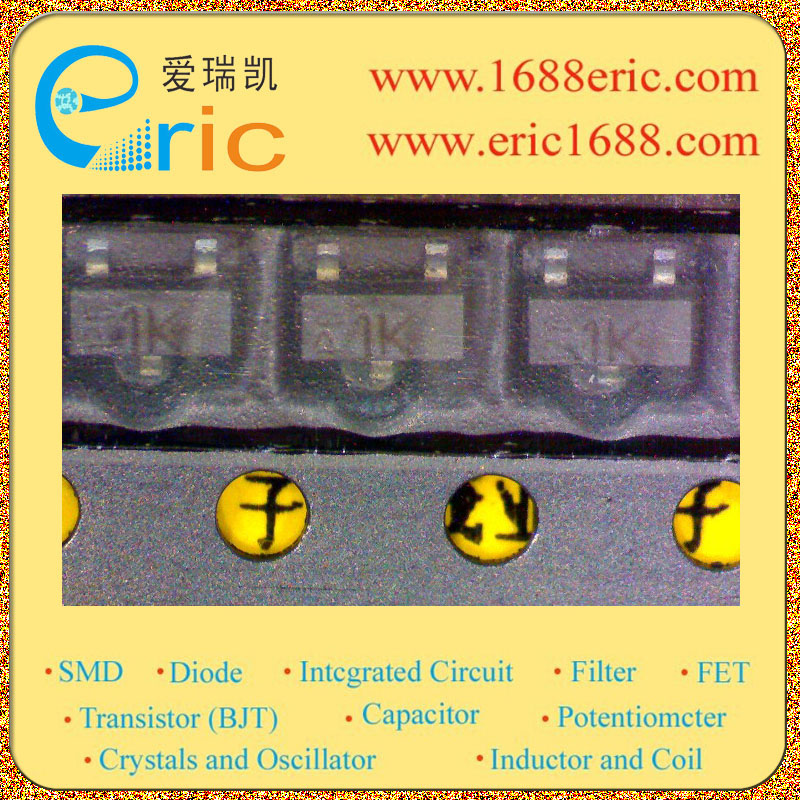

BC848B
 型号:  BC848B
 标记/丝印/代码/打字:  1K
 厂家:  VISHAY
 封装:  SOT-23/SC-59
 批号:  06+
 库存数量:  6000
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  NPN
 技术文档PDF:  在线阅读

 在线购买

BC848B 1K 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 30V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 30V
集电极连续输出电流IC Collector Current(IC) 100mA/0.1A
截止频率fT Transtion Frequency(fT) 300MHz
直流电流增益hFE DC Current Gain(hFE) 200~450
管压降VCE(sat) Collector-Emitter Saturation Voltage 200~600 mV
耗散功率Pc Power Dissipation 310mW/0.31W
Description & Applications NPN Silicon Epitaxial Planar Transistors for switching and AF amplifier applications. Especially suited for automatic insertion in thick- and thin-film circuits. These transistors are subdivided into three groups A, B and C according to their current gain. The type BC846 is available in groups A and B, however, the types BC847 and BC848 can be supplied in all three groups. The BC849 is a low noise type available in groups B and C. As complementary types, the PNP transistors BC856...BC859 are recommended.
描述与应用 NPN硅外延平面晶体管开关和AF放大器应用。 特别适用于自动插入厚薄膜电路。 这些晶体管被分为三组,A,B和C根据其电流增益。 BC846是不同的,在组A和B,然而,类型BC847和BC848可以提供在所有三个组。 BC849是一款低噪声型,B组和C的互补类型,
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
BC848AW 1J ON 05+ SOT-323/SC-70 6000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848B 1K VISHAY 06+ SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848b 8CB HI-SINCERITY 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848BR 1kr NXP/PHILIPS 05+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848BW 1K MOTOROLA 05+ SOT-323/SC-70 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848C K1L DIODES 06+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848CW 1L NXP/PHILIPS 05+ SOT-323/SC-70 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848W 1M NXP/PHILIPS 05+ SOT-323/SC-70 15000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848 1M NXP/PHILIPS 05+ SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848BL3 E6327 1K INFINEON 11+ROHS SOD-923/TSLP-3-1 226000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848B 1K INFINEON 05+3KNOPB SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848BLT1G 1K ON 05NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848CW 1L ON 08NOPB SOT-323/SC-70 3000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848C 1L INFINEON 09NOPB SOT-23/SC-59 118000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848C 1L INFINEON 09+rohs SOT-23/SC-59 33000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848B 1K NXP/PHILIPS 07+rohs SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848B/B 4ZW NXP/PHILIPS 0823NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848B 1K JAT 05+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BC848CDW1T1 1L ON 05+ SOT-363/SC-88 2400 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
BC848BL3 E6327 1K INFINEON 13+ROHS SOD-923/TSLP-3-1 0 三极管Bipolar Junction Transistors(BJT) 查看
