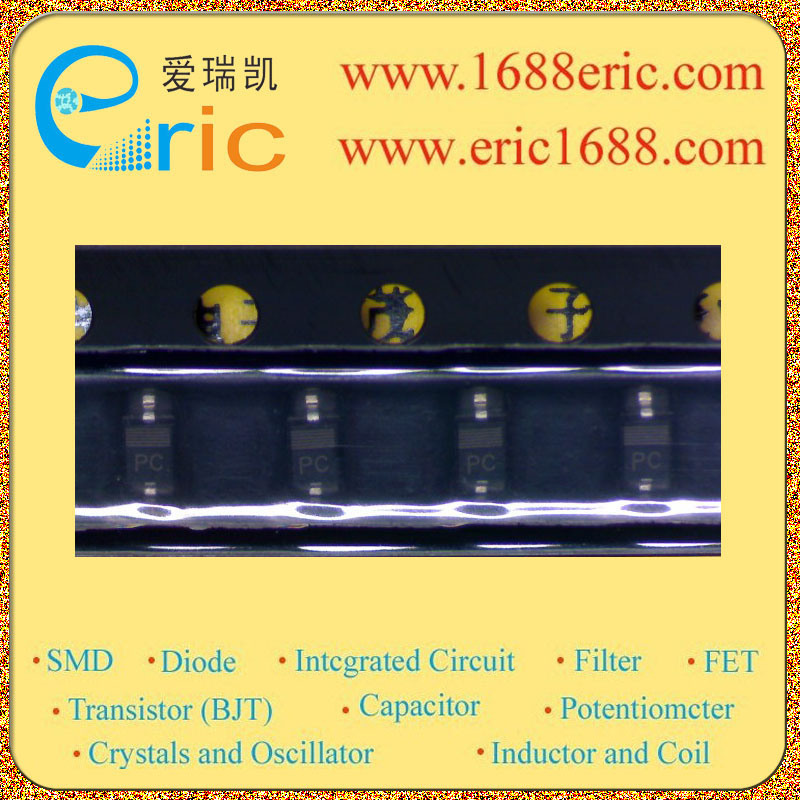

BB153 PC 的参数 |
| 反向电压VR
Reverse Voltage |
32V |
| 电容值C
Diode capacitance |
34.65pF?42.35pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
2.361pF?2.754pF |
| @反向电压VR
@Reverse Voltage |
28V |
| 电容比
Capacitance ratio |
13.5 |
| Description & Applications |
VHF variable capacitance diode DESCRIPTION The BB153 is a planar technology variable capacitance diode, in a SOD323 very small plastic SMD package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. Electronic tuning in VHF television tuners, band B up to 460 MHz VCO Excellent linearity Excellent matching to 2% DMA Very small plastic SMD package C28: 2.6 pF; ratio: 15 Very low series resistance |
| 描述与应用 |
甚高频可变电容二极管 说明 BB153是一个平面技术 变容二极管，在 SOD323非常小的塑料SMD 包。良好的匹配 性能达到滑翔 匹配和直接匹配 汇编程序 用于甚高频电视调谐器的电气调谐,频带B高达460 MHz 压控振荡器 出色的线性度 出色的匹配至2％的DMA 非常小的塑料贴片封装 C28：2.6 pF 比率：15 超低串联电阻 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| BB153 |
PC |
NXP/PHILIPS |
06+rohs |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB153 |
PC |
NXP/PHILIPS |
04+ROHS |
SOD-323/SC-76/0805 |
600 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB155 |
PE |
NXP/PHILIPS |
05+ |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB155 |
PE |
NXP/PHILIPS |
05+ |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB156 |
PF |
NXP/PHILIPS |
05NOPB |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB156 |
PF |
NXP/PHILIPS |
05+NOPB |
SOD-323/SC-76/0805 |
1600 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB158 |
PH |
NXP/PHILIPS |
05+NOPB |
SOD-323/SC-76/0805 |
710 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB152 |
PB |
NXP/PHILIPS |
06NOPB |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB152 |
PB |
NXP/PHILIPS |
0635NOPB |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB151 |
PA |
NXP/PHILIPS |
05+ |
SOD-323/SC-76/0805 |
3430 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| ECGC1BB150R |
33 |
PANASONIC |
05 |
D |
1000 |
电容Capacitor-其它Other |
查看 |
| BB151 |
PA |
NXP/PHILIPS |
05+ROHS |
SOD-323/SC-76/0805 |
3000 |
二极管Diodes |
查看 |
|
|
|
