BB149A PL 的参数 |
| 反向电压VR
Reverse Voltage |
30V |
| 电容值C
Diode capacitance |
18.22pF-21.26pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
1.951pF-2.225pF |
| @反向电压VR
@Reverse Voltage |
28V |
| 电容比
Capacitance ratio |
1.27 |
| Description & Applications |
UHF variable capacitance diode DESCRIPTION The BB149A is a planar technology variable capacitance diode, in a SOD323 very small plastic SMD package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. Electronic tuning in UHF television tuners VCO Excellent linearity Excellent matching to 2% DMA Very small plastic SMD package C28: 2.1 pF; ratio 9 Low series resistance |
| 描述与应用 |
超高频可变电容二极管 说明 BB149A是一个平面技术 变容二极管，在 SOD323非常小的塑料SMD 包。良好的匹配 性能达到滑翔 匹配和直接匹配 汇编程序 用于超高频电视调谐器的电气调谐 压控振荡器 出色的线性度 出色的匹配至2％的DMA 非常小的塑料贴片封装 C28：2.1 pF;比率9 低串联电阻 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

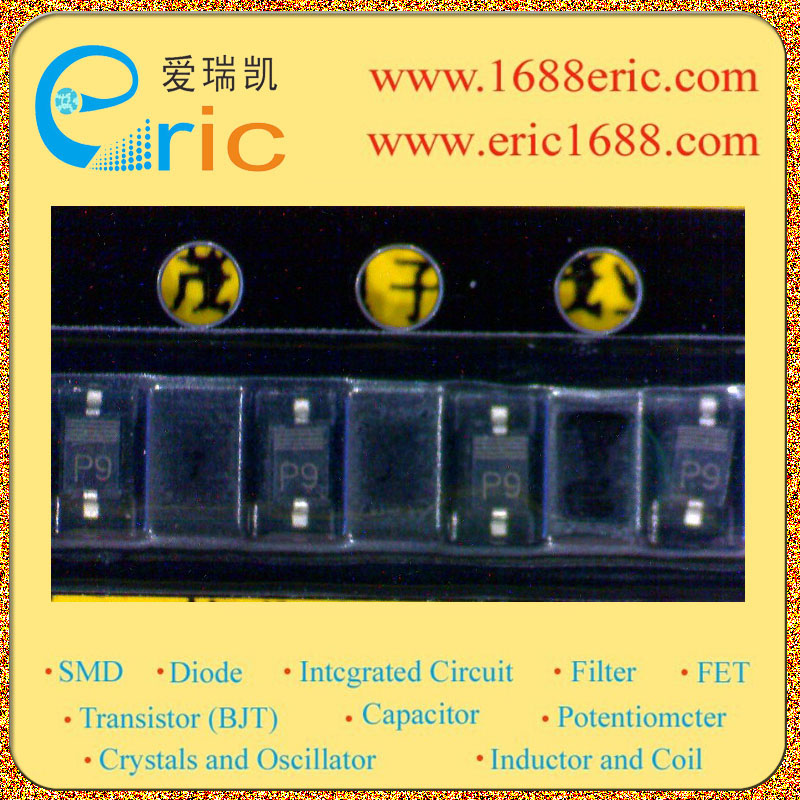

| BB149 |
P9 |
NXP/PHILIPS |
06NOPB |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB149 |
P9 |
NXP/PHILIPS |
05+NOPB |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB149A |
PL |
NXP/PHILIPS |
05+NOPB |
SOD-323/SC-76/0805 |
340 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB149A |
PL |
NXP/PHILIPS |
05+ |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
|
|
|
