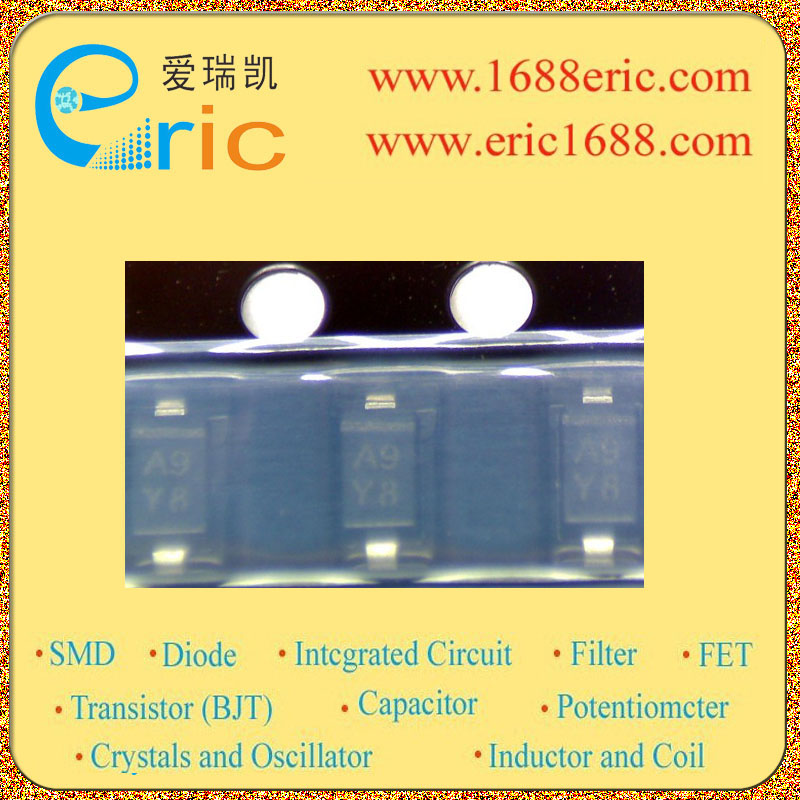

BAV20W-V-GS08 A9 的参数 |
| 反向电压Vr
Reverse Voltage |
150 V |
| 平均整流电流Io
Average Rectified Current |
250mA/0.25A |
| 最大正向压降VF
Forward Voltage(Vf) |
|
| 反向恢复时间Trr
Reverse Recovery Time |
50NS |
| 最大耗散功率Pd
Power Dissipation |
410mW/0.41W |
| Description & Applications |
FeAtures ? SmAll SignAl Switching Diodes, High VoltAge ? Silicon EpitAxiAl PlAnAr Diodes ? For generAl purpose ? These diodes Are Also AVAilAble in other cAse styles including: the DO-35 cAse with the type designAtions BAV19 to BAV21, the minimELF cAse with the type designAtions BAV100 to BAV103, the SOT-23 cAse with the type designAtions BAS19 to BAS21, And the SOD-323 cAse with type designAtions BAV19WSV to BAV21WS-V. ? LeAd (Pb)-free component ? Component in AccordAnce to RoHS 2002/95/EC And WEEE 2002/96/EC |
| 描述与应用 |
特点 ?小信号开关二极管，高电压 ?硅外延平面二极管 ?通用 ?这些二极管也可在其他 表壳款式，包括：DO-35的情况下 类型指定BAV19 BAV21 同类型案件指定mINImELF BAV100 BAV103，SOT-23与 类型名称BAS19 BAS21 SOD-323型命名BAV19WSV BAV21WS-V。 ??铅（Pb）免费组件 ??组件按照RoHS 2002/95/EC和WEEE 2002/96/EC |
