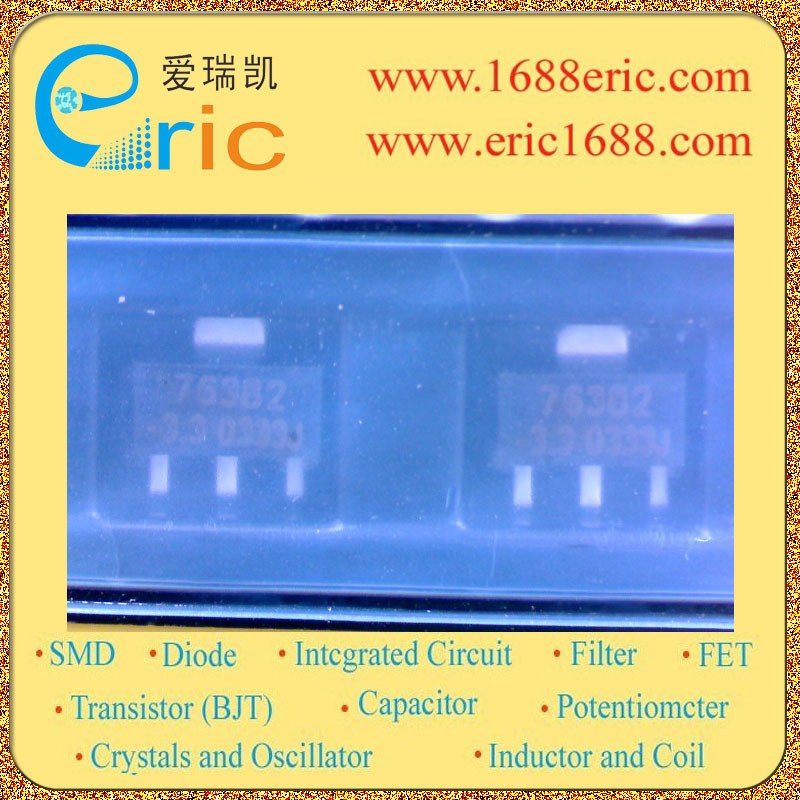

AMC76382-3.3PKT 76392-3.3 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
3~10V |
| 输出电压VOUT
Voltage - Output |
3.3V |
| 输出电流Io
Current - Output |
300mA/0.3A |
| 最大压降VDO
Voltage - Dropout |
300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
1764mW/1.764W |
| Description & Applications |
450mA LOW DROPOUT REGULATOR ;?2% internally trimmed output ?Input-Output differential of typ. 360mV at 300mA ?low quiescent current of 10μA in typical ? P-MOS output stage with low RDS, ON. ? Short circuit protection ?Internal thermal overload protection ?Enhanced pin-to-pin compatible to the XC62FP series, RT9261/A. ?3-Lead SOT-89 and SOT-223 packages. |
| 描述与应用 |
450毫安低压差稳压器;?内部微调输出2％ ?输入输出差分（典型值）。值为360mV在300mA ?低静态电流为10μA典型 ?P-MOS输出级具有低RDS，ON。 ?短路保护 ?内部过热保护 ?增强的引脚对引脚兼容的XC62FP系列，RT9261/ A ?3引脚SOT-89和SOT-223封装。 |
