AHC1G66HDCKR ALH 的参数 |
| 开关配置
Circuit |
|
| 导通电阻
On-State Resistance |
10Ω/Ohm |
| 电源电压
Voltage - Supply |
2V~5.5V |
| Description & Applications |
Analog switch The SN74AHC2G66H is handle both analog and digital signals . Each permits signals with amplitudes of up to 5.5V(peak) to be transmitted in either direction. Each switch section has its own enable input control (C).A high-level voltage applied to C turns on the associated switch section. Applications include signal gating,chopping,modulation or demodulation(modem),and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. |
| 描述与应用 |
模拟开关 SN74AHC2G66H是同时处理模拟和数字信号。每个允许信号幅度可达5.5V（峰值）在任一方向发送。 交换机的每个部分都有自己的使能输入控制（C）。一个高层次的电压施加到C打开相关的开关部分。 应用包括信号门控，斩波调制或解调（调制解调器），信号复用模拟 - 数字和数字 - 模拟转换系统。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

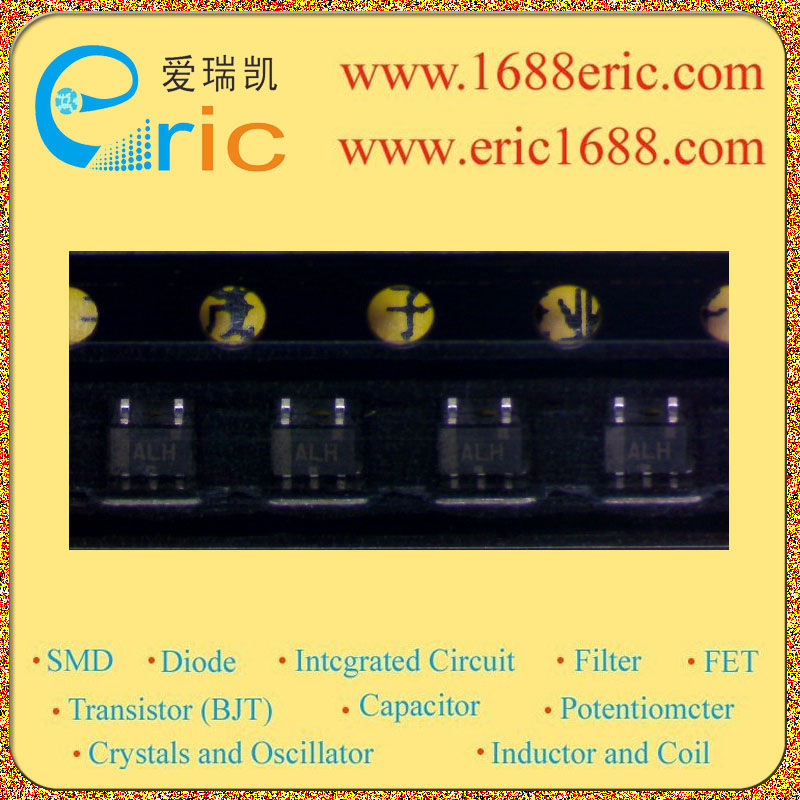

| AHC1G66HDCKR |
ALH |
TEXAS |
05+ |
SOT-353/SC70-5 |
14000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74AHC1G66HDBVR |
A6 |
TEXAS |
05+ |
SOT-153/SOT23-5 |
1800 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74AHC1G66HDCK3 |
ALH |
TEXAS |
04+ |
SOT-353/SC70-5 |
420 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74AHC1G66HDCKR |
|
TEXAS |
05+ |
SOT-353/SC70-5 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74AHC1G66HDCKR |
ALH |
TEXAS |
05+ |
SOT-353/SC70-5 |
15740 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
|
|
|
