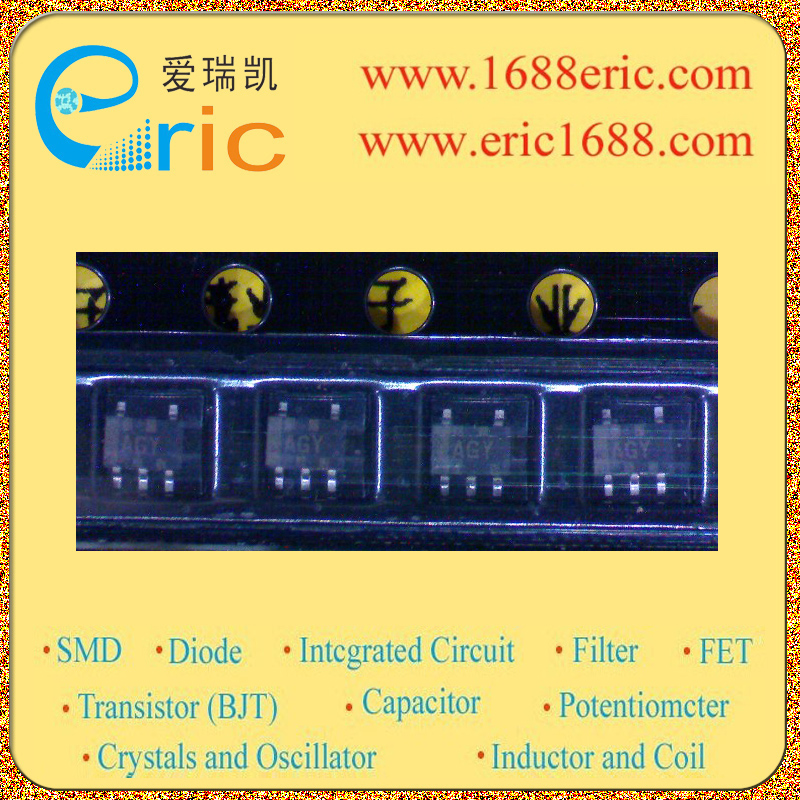

AHC1G32DCKR AGY 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.3V~1.1V |
| 高逻辑电平
Logic Level - High |
1.7V~4.4V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7.5ns @ 5V，50pF |
| Description & Applications |
single 2-input positive-or gate;Features Operating Range of 2 V to 5.5 V Max tpd of 6.5 ns at 5 V Low Power Consumption, 10-μA Max ICC ±8-mA Output Drive at 5 V Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time Latch-Up Performance Exceeds 250 mA Per JESD 17 |
| 描述与应用 |
单双输入正或门;特性 2 V至5.5 V的工作范围 最大5 V时为6.5 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V 施密特触发器动作在所有输入使？ 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| AHC1G32DCKR |
AGY |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| AHC1G32DCKR |
AGY |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
9100 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| CAHC1G32DBVR |
|
TEXAS |
05+ |
SOT-153/SOT23-5/SC-74A |
2700 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G32DBV3 |
A32 |
TEXAS |
04+ROHS |
SOT-153/SOT23-5/SC-74A |
1500 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G32DBVR |
A32 |
TEXAS |
03NOPB |
SOT-153/SOT23-5/SC-74A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G32DBVR |
A32 |
TEXAS |
03+NOPB590K |
SOT-153/SOT23-5/SC-74A |
612393 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G32DCKR |
AG |
TEXAS |
05+ |
SOT-153/SOT23-5/SC-74A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G32DCKR |
AG |
TEXAS |
05+NOPB12K |
SOT-153/SOT23-5/SC-74A |
22650 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
