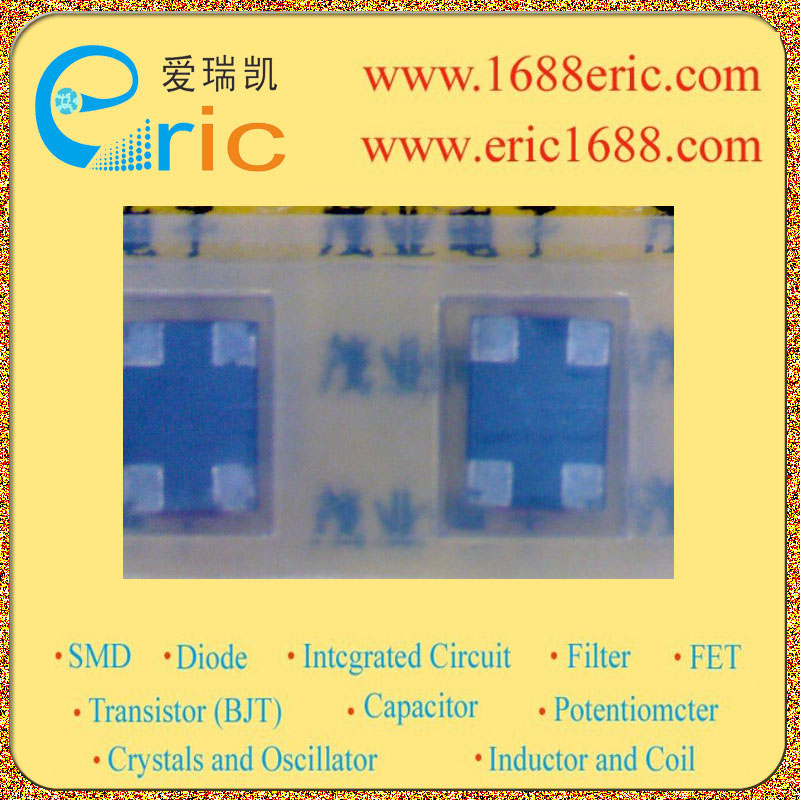

ACM4532-601-2P-T001 的参数 |
| 线路数
Number of Lines |
2 |
| 电感值
Inductance |
|
| 电流
Current |
1500mA |
| 电阻DCR
DC Resistance (DCR) |
10R |
| 阻抗
Impedance |
600R |
| Description & Applications |
FEATURES ? A chip-type common mode filter for large current applications. Common mode impedance surpasses 300 to 1000? at 100MHz. Noise is greatly suppressed. ? Capable of handling the highest current (up to 10A) of any chiptype common mode filter. ? Height and size have been considered, resulting in a compact and light-weight choke coil. Applicable for the miniaturization required to reduce the size and weight of portable equipment. ? The products contain no lead and also support lead-free soldering. ? This product does not contain regulated substances that are slated to be included in RoHS. APPLICATIONS Used for power line noise suppression for any electronic devices Used to counter adapter/battery line noise for relatively large electronic devices such as notebook PCs, stand-alone word processors, etc |
| 描述与应用 |
特点 ?大电流应用的芯片型共模滤波器。 共模阻抗超过300?1000Ω在100MHz。 噪音被大大抑制。 ?能够处理最高电流（高达10A）的任何芯片类型的共模滤波器。 ?高度和大小已被考虑，从而实现紧凑 ，重量轻的扼流线圈。适用于小型化的 降低便携式设备的尺寸和重量的需要。 ?该产品不含有铅和支持无铅 焊接。 ?本产品不含有受管制物质， 预计被列入限制有害物质指令（RoHS）规范。 应用 使用任何电子设备的电源线噪声抑制 用来对付适配器/电池线路噪声比较大的电子设备，如笔记本电脑，单机字处理器等 |
