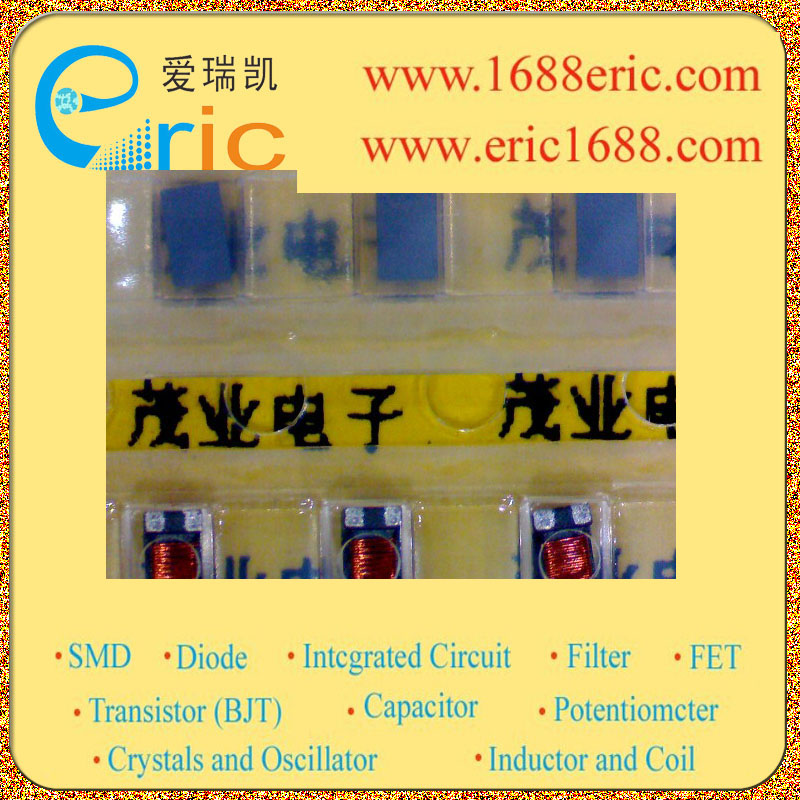

ACM2012-361-2P-T000
 型号:  ACM2012-361-2P-T000
 标记/丝印/代码/打字:
 厂家:  TDK
 封装:  0805-361
 批号:  05+6rnopb
 库存数量:  1000
 所属分类:  电感Inductor/Coil/Choke
  共模电感Common Mode Choke
 技术文档PDF:  在线阅读

 在线购买

ACM2012-361-2P-T000  的参数

线路数 Number of Lines 2
电感值 Inductance
电流 Current 220mA
电阻DCR DC Resistance (DCR) 0.5R
阻抗 Impedance 360R
Description & Applications FEATURES ? Although greatly miniaturized, this wire-wound chip-type filter maintains the characteristics needed for a common mode filter. Common mode impedance is 1000? [at 100MHz], so this filter is greatly effective in supporting noise. ? Almost no affect upon even high speed signals since differential mode impedance is kept low. ? This series includes both 2-line and 3-line types. They are used for various types of circuits and noise. APPLICATIONS ? Used for radiation noise suppression for any electronic devices. ? Used to counter common mode noise affecting signals within high-speed lines. ? USB line for personal computers and peripheral equipment. ? IEEE1394 line for personal computers, DVC, STB, etc. ? LVDS, panel link line for liquid crystal display panels.
描述与应用 特点 ?虽然大大小型化,绕线片式滤波器 保持所需的共模滤波器的特性。 共模阻抗为1000?][在100MHz,所以这个过滤器 大大有效地支持噪音。 ?几乎没有影响后,即使是高速差分信号,因为 模阻抗保持在低水平。 ?该系列包括2线和3线的类型。它们被用来 为不同类型的电路和噪声。 应用 ?用于任何电子设备的辐射噪声抑制。 ?用于对付内影响信号的共模噪声 高速线路。 ?个人电脑及外围设备的USB线。 用于个人计算机的IEEE1394线,DVC,STB等。 ?LVDS液晶显示面板,面板连接线。
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
ACM2012-121-2P-T000 TDK 07+ 0805-120R 0 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-121-2P TDK 05+NOPB500 0805-120R 5700 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-201-2P-T000 TDK 06+ROHS 0805-201 50 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-361A-2P-T TDK 07NOPB 0805-361 18000 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-361-2P-T000 TDK 06+ 0805-361 82500 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-361-2P-T000 TDK 05+6rnopb 0805-361 1000 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-900-2P-T000 TDK 05+ 0805-900 14000 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-900-2P-T000 TDK 08+ROHS2KM 0805-900 17000 电感Inductor/Coil/Choke-共模电感Common Mode Choke 查看
ACM2012-201-2P-T000 TDK 07+rohs 0805-201 0 电感Inductor/Coil/Choke 查看
ACM2012-900-2P-T002 TDK 05+ 0805-900 8198 电感Inductor/Coil/Choke 查看
ACM2012-900-2P-T001 TDK 05+ 0805-900 2000 电感Inductor/Coil/Choke 查看
ACM2012-900-2P-TL000 TDK 07+ TDK 4986 电感Inductor/Coil/Choke 查看
