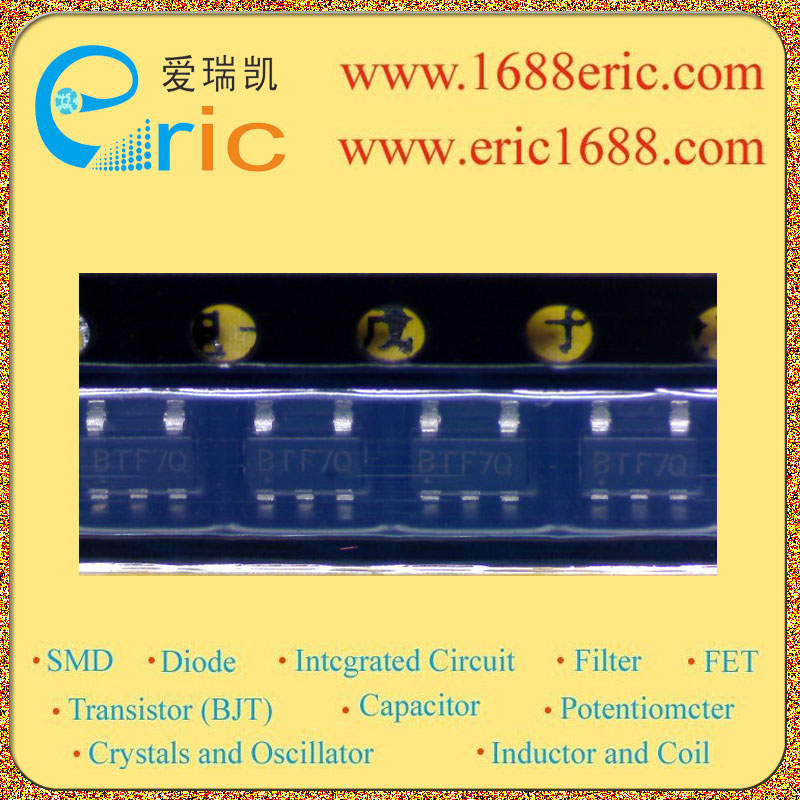

AAT3215IGV-3.0-T1 BT 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
6V |
| 输出电压VOUT
Voltage - Output |
3V |
| 输出电流Io
Current - Output |
150mA/0.15A |
| 最大压降VDO
Voltage - Dropout |
140mV/0.14V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
526mW/0.526W |
| Description & Applications |
150mA CMOS High Performance LDO;? Low Dropout: 140mV at 150mA ? Guaranteed 150mA Output ? High Accuracy ±1.5% ? 95μA Quiescent Current ? High Power Supply Ripple Rejection — 70dB at 1kHz — 50dB at 10kHz ? Very Low Self Noise: 45μVrms ? Fast Line and Load Transient Response ? Short-Circuit Protection ? Over-Temperature Protection ? Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors ? Noise Reduction Bypass Capacitor ? Shutdown Mode for Longer Battery Life ? Low Temperature Coefficient ? Ten Factory-Programmed Output Voltages ? SOT23 5-Pin or SC70JW 8-Pin Package |
| 描述与应用 |
150MA CMOS高性能LDO;?低压差：150mA时压差为140mV ?保证150mA输出 ?高精度±1.5％ ?95μA静态电流 ?高电源纹波抑制 - 1kHz时为70dB - 10kHz时为50dB ?极低的自噪声：45μVRMS ?快速电压和负载瞬态响应 ?短路保护 ?过温保护 ?使用低等效串联电阻 （ESR）陶瓷电容器 ?降噪绕道电容 ?关断模式，有/yes更长的电池寿命 ?低温度系数 |
