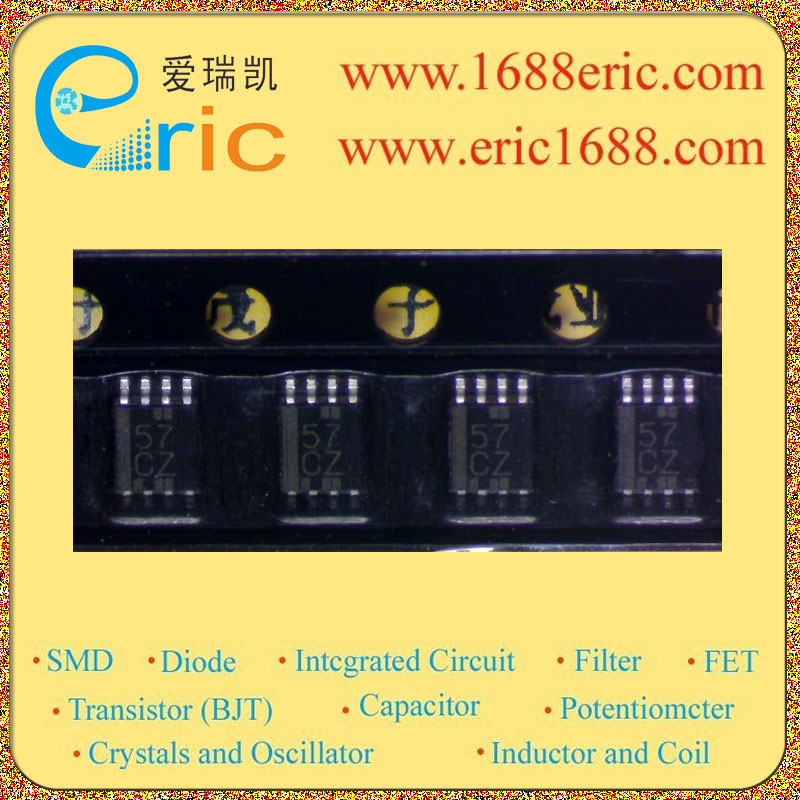

74LVC2G157DCU3-1
 型号:  74LVC2G157DCU3-1
 标记/丝印/代码/打字:  57
 厂家:  NXP/PHILIPS
 封装:  VFSOP8/US8
 批号:  04+
 库存数量:  800
 所属分类:  集成电路ICIntegrated Circuit(IC)
  逻辑电路Logic circuit
    解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder
 技术文档PDF:  在线阅读

 在线购买

74LVC2G157DCU3-1 57 的参数

类型 Type
电路 Circuit
独立电路 Independent Circuits
输出高,低电流 Current - Output High, Low
单电源 Voltage Supply Source 单电源 Single Supply
电源电压 Voltage - Supply 1.65 V ~ 5.5 V
Description & Applications This single 2-line to 1-line data selector/multiplexer is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC2G157 features a common strobe (G) input. When the strobe is high, Y is low and Y is high.When the strobe is low, a single bit is selected from one of two sources and is routed to the outputs. The device provides true and complementary data.NanoFree? package technology is a major breakthrough in IC packaging concepts, using the die as the package.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. Available in the Texas Instruments NanoFree? Package Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 6 ns at 3.3 V Low Power Consumption, 10-μA Max ICC ±24-mA Output Drive at 3.3 V Typical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°C
描述与应用 这个单-2线1线数据选择器/多路复用器专为1.65-V到5.5 V的VCC操作。SN74LVC2G157拥有一个共同的选通信号(G)输入。当选通信号高,Y是低和Y是高。当选通信号为低电平时,一个位从两个源之一被选择和被路由到输出。该器件提供真正的和互补的数据。 NanoFreeTM包装技术是IC包装概念的重大突破。这个装置是完全指定的部分断电应用程序使用IOFF。当断电时,IOFF电路关闭输出,防止破坏回流电流通过设备。 NanoFree?包装 支持5-V VCC操作 接受输入电压到5.5 V 最大TPD为6 ns,在3.3 V时 低功耗,10μA最大ICC ±24 mA输出驱动,在3.3 V时 典型的VoIP(输出地弹跳)<0.8 V,在VCC=3.3 V,TA= 25°C时
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
74LVC2G157DCU3-1 57 NXP/PHILIPS 04+ VFSOP8/US8 800 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157YEAR TEXAS 05+ 8-DSBGA/8-WCSP/8-XFBGA 0 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157DCT3 C57 TEXAS 05+NOPB VFSOP8/US8 600 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157DCU6 C57R TEXAS 05+NOPB VFSOP8/US8 0 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157DCUR C57R TEXAS 05+ VFSOP8/US8 6610 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157YEAR C37 TEXAS 04+ 8-DSBGA/8-WCSP/8-XFBGA 1098 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
SN74LVC2G157YZPR 65HC37 TEXAS 06NOPB 8-DSBGA/8-WCSP/8-XFBGA 1500 集成电路ICIntegrated Circuit(IC)-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder 查看
