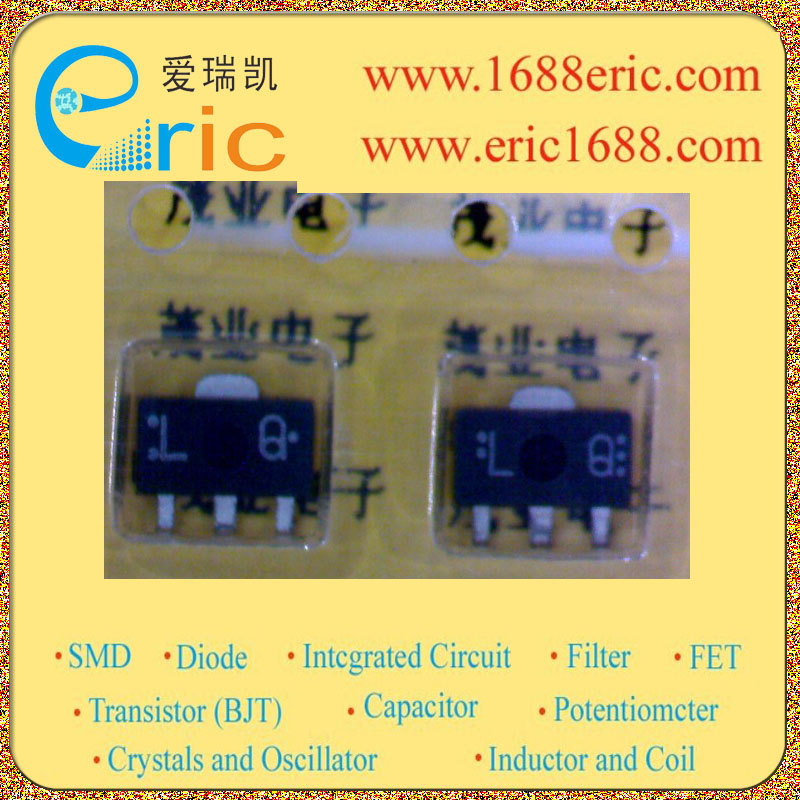

2SK690-Q LQ 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
10V |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-6V |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
220mA-380mA |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-6V |
| 耗散功率Pd
Power Dissipation |
1W |
| Description & Applications |
High Frequency FETs.
GaAs N-Channel MES FET.
For UHF medium output power amplification.
Features
. Large collector dissipation PC.
. Mini-power type package, allowing downsizing of the sets and automatic insertion through the tape/magazine packing. |
| 描述与应用 |
高频场效应管。
砷化镓N沟道MES FET。
UHF中等输出功率放大。
特点
.大集电极耗散PC。
.小功率型封装，允许瘦身套和通过自动插入磁带/盒包装。 |
