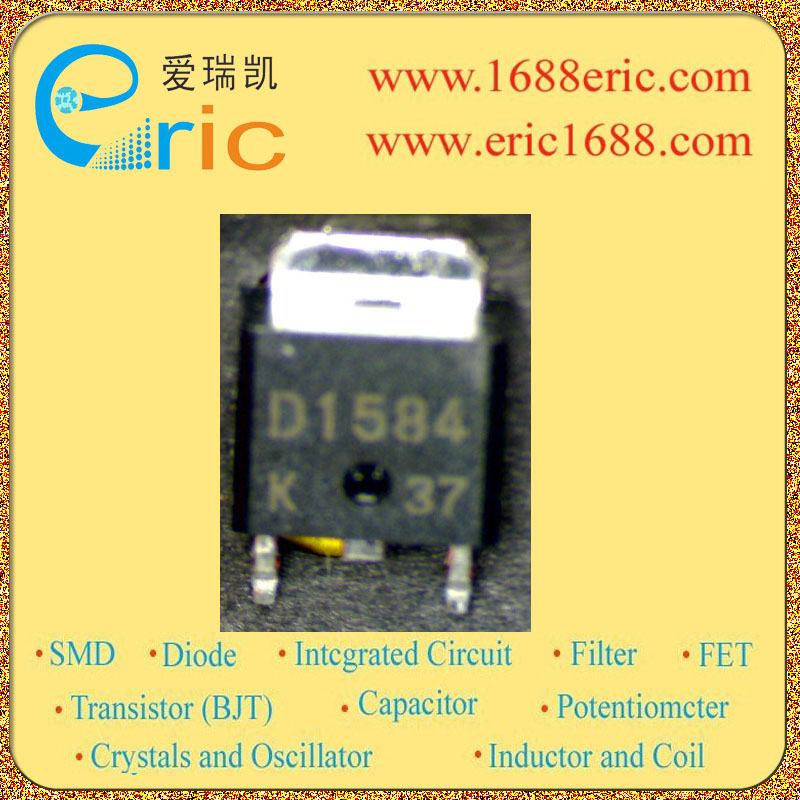

2SD1584-Z-T1
 型号:  2SD1584-Z-T1
 标记/丝印/代码/打字:  D1584
 厂家:  NEC
 封装:  TO-252/DPAK
 批号:  05+
 库存数量:  5700
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  NPN
 技术文档PDF:  在线阅读

 在线购买

2SD1584-Z-T1 D1584 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 60V
集电极连续输出电流IC Collector Current(IC) 3A
截止频率fT Transtion Frequency(fT) 120MHz
直流电流增益hFE DC Current Gain(hFE) 800~3200
管压降VCE(sat) Collector-Emitter Saturation Voltage 250mV/0.25V
耗散功率Pc Power Dissipation 2W
Description & Applications SMD type transistor NPN Silicon Epitaxial Transistor Features Low VCE(sat). High hFE.
描述与应用 SMD型晶体管 NPN硅外延晶体管 特点 低VCE(饱和)。 HFE高。
技术文档PDF下载 在线阅读
