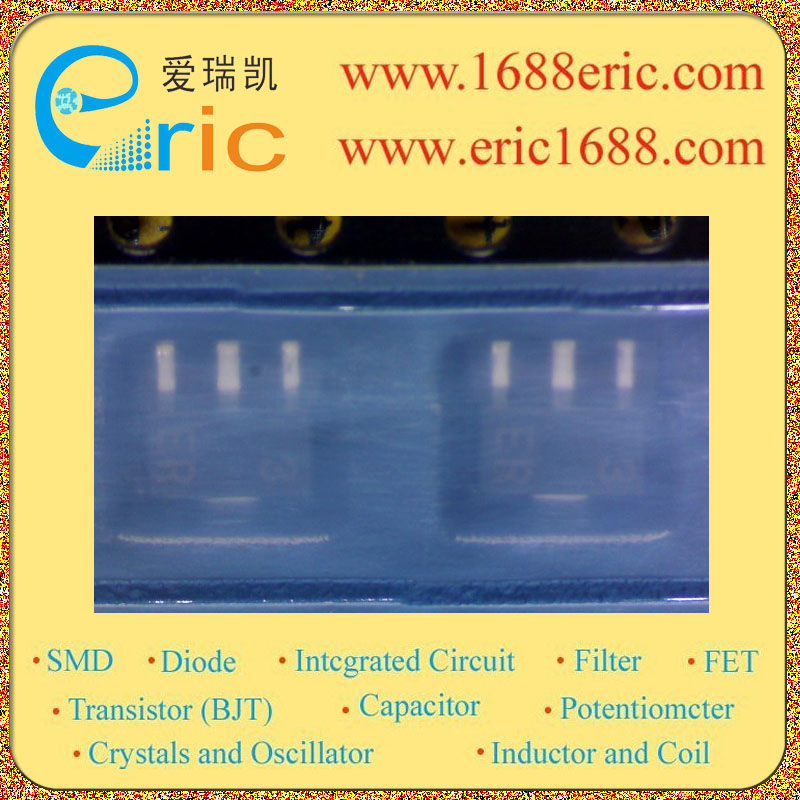

2SC4807ER
 型号:  2SC4807ER
 标记/丝印/代码/打字:  ER
 厂家:  RENESAS
 封装:  SOT-89/UPAK
 批号:  05NOPB
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  NPN
 技术文档PDF:  在线阅读

 在线购买

2SC4807ER ER 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 20V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 15V
集电极连续输出电流IC Collector Current(IC) 200mA/0.2A
截止频率fT Transtion Frequency(fT) 4.4Ghz
直流电流增益hFE DC Current Gain(hFE) 50~250
管压降VCE(sat) Collector-Emitter Saturation Voltage
耗散功率Pc Power Dissipation 800mW/0.8W
Description & Applications Features ?Silicon NPN epitaxial planar type ?High gain bandwidth product fT= 4.4 GHz Typ ?High output power 1 dB Power compression point Pcp = 24 dBm Typ at VCE= 5V , IC = 100 mA , f = 900 MHz Application ?VHF / UHF wide band amplifier
描述与应用 特点 ?NPN硅外延平面型 ?高增益带宽乘积fT=4.4 GHz的典型 ?高输出功率1 dB功率压缩点PCP =24 dBm(典型值)在VCE=5V,IC= 100 mA时,F =900兆赫 应用 ?VHF / UHF宽频带放大器
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
2SC4809-R 15R Panasonic 05+ SOT-523 2480 标记 查看
2SC4805-Q 3SQ Panasonic 05+ SOT-323/SC-70 3000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4805-Q 3SQ Panasonic 06+ROHS2800 SOT-323/SC-70 9450 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4807ER ER RENESAS 05+ SOT-89/UPAK 780 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4807ER ER RENESAS 05NOPB SOT-89/UPAK 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4808 3M Panasonic 05+ SOT-523/SC-75 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809 ISQ Panasonic 05+ SOT-523/SC-75 300 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809J-R 1SR Panasonic 06nopb SOT-523/SC-75 400 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809-Q 1SQ Panasonic 05+ SOT-523/SC-75 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809-R 1SR Panasonic 05+ SOT-523/SC-75 2836 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809-R 1sr Panasonic 05+ SOT-523/SC-75 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4809GQL 1SQ Panasonic 10NOPB SOT-523/SC-75 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC4805GRL 3SR Panasonic 08NOPB SOT-323/SC-70 3000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
