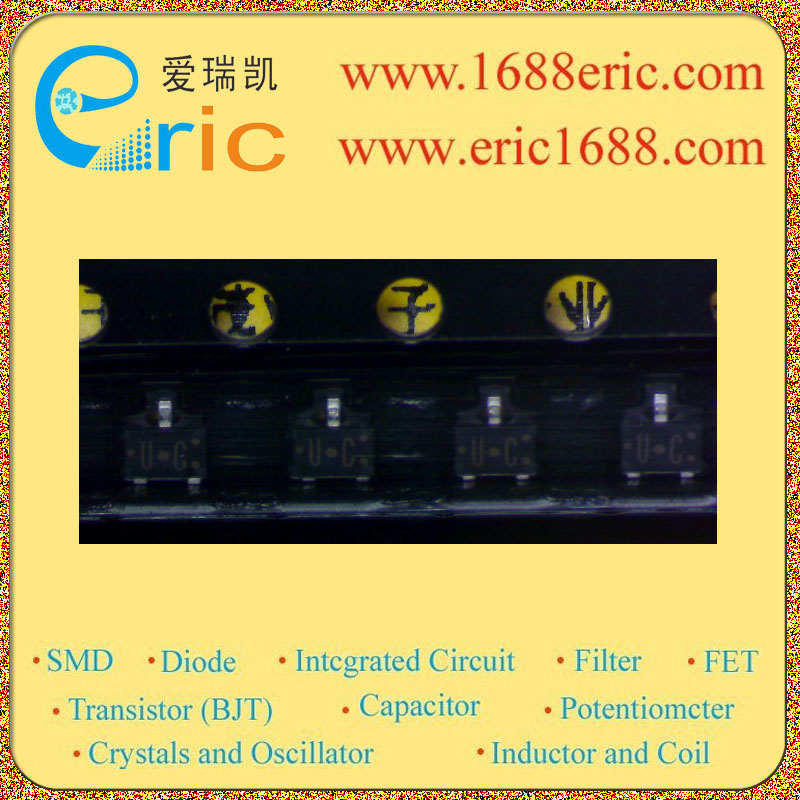

2SC3931-C UC 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
30V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
15V |
| 集电极连续输出电流IC
Collector Current(IC) |
15mA |
| 截止频率fT
Transtion Frequency(fT) |
650MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
65~160 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
150mW/0.15W |
| Description & Applications |
Silicon NPN epitaxial planer type For high-frequency amplification Optimum for RF amplification of FM/AM radios High transition frequency fT S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 |
NPN硅外延平面型 用于高频放大 最适用于射频放大FM/ AM收音机 高转换频率FT S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
