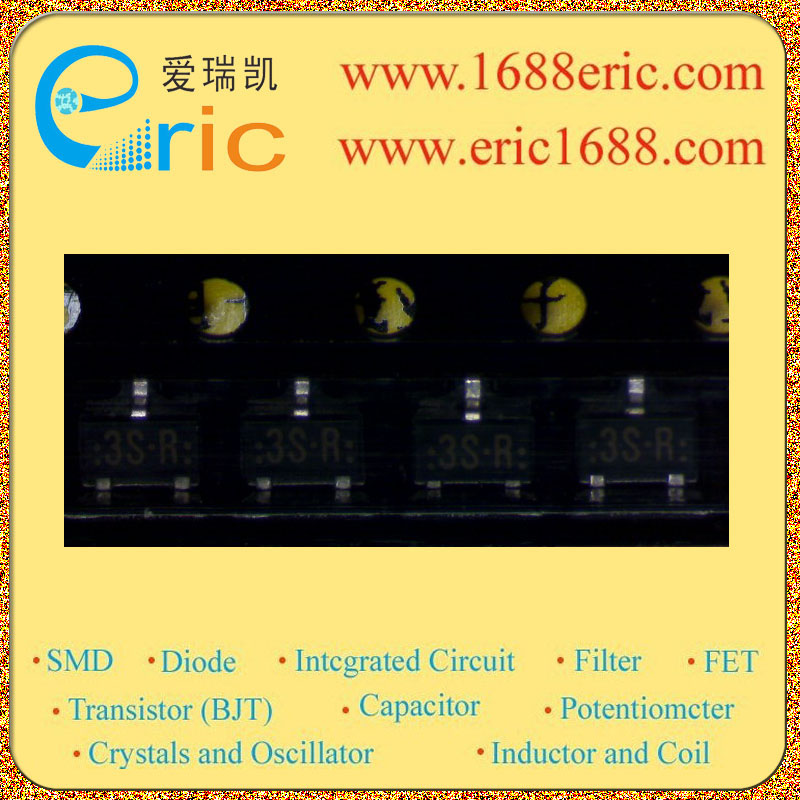

2SC3904 3SR 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
2.5V |
| 集电极连续输出电流IC
Collector Current(IC) |
65mA |
| 截止频率fT
Transtion Frequency(fT) |
8.5Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
120 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
200mW/0.2W |
| Description & Applications |
Silicon NPN epitaxial planer type For 2GHz band low-noise amplification High transition frequency fT Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 |
NPN硅外延平面型 用于2GHz频段低噪声放大 高转换频率FT 迷你型包装，通过带盒封装允许缩减设备规模和自动插入 |
