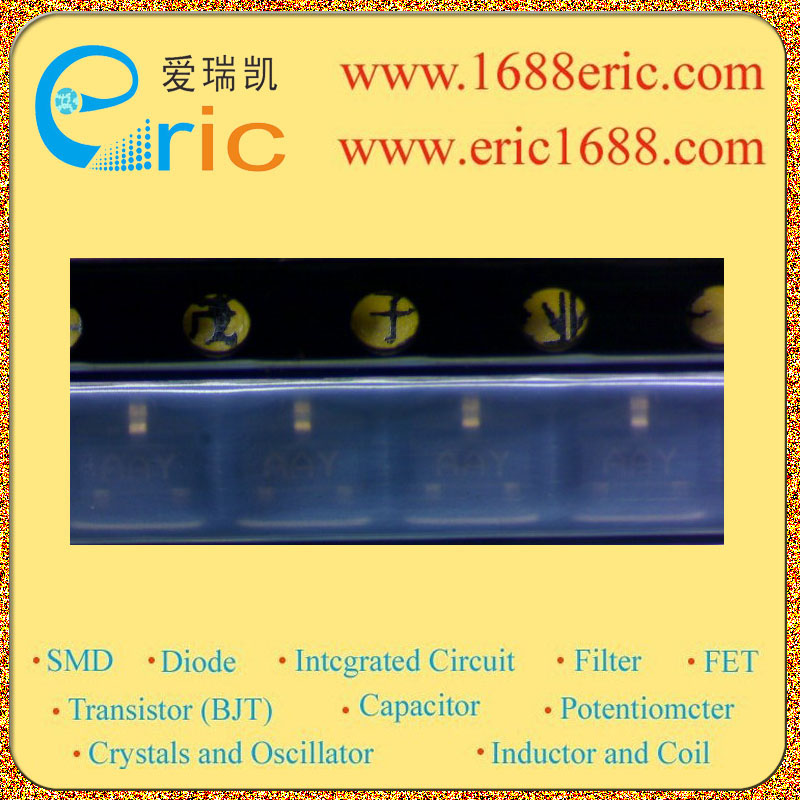

2SA1979SY AAY 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-40V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?32V |
| 集电极连续输出电流IC
Collector Current(IC) |
?500mA/-0.5A |
| 截止频率fT
Transtion Frequency(fT) |
200MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
120~240 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
-250mV/-0.25V |
| 耗散功率Pc
PoWer Dissipation |
625mW/0.625W |
| Description & Applications |
PNP Silicon Transistor Description ? Medium power amplifier Features ? Large collector current : ICMax=-500mA ? Suitable for low-Voltage operation because of its low saturation voltage ? Complementary pair with 2SC5342 |
| 描述与应用 |
PNP硅晶体管 描述 ?中等功率放大器 特点 ?大集电极电流：ICMAX=-500毫安 ?适用于低电压操作，因为它的低饱和电压 ?互补配对2SC5342 |
