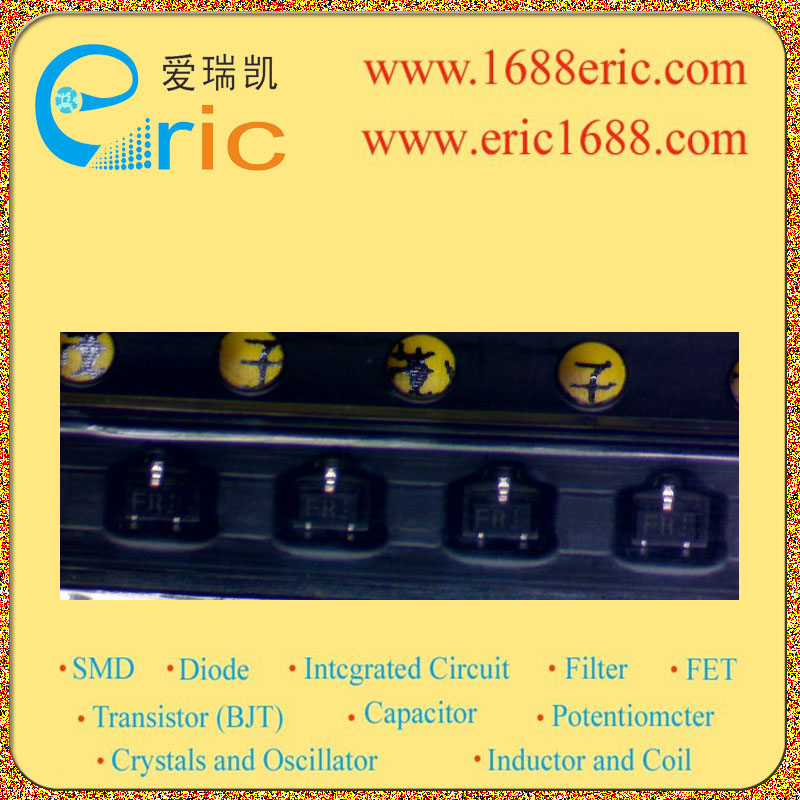

2SA1774 TLR FR 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
?60V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?50V |
| 集电极连续输出电流IC
Collector Current(IC) |
?150mA/-0.15A |
| 截止频率fT
Transtion Frequency(fT) |
140MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
180~390 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?500mV/-0.5V |
| 耗散功率Pc
PoWer Dissipation |
150mW/0.15W |
| Description & Applications |
General Purpose Transistor Features 1) Excellent hFE linearity. 2) Complements the 2SC2412K /2SC4081 / 2SC4617 / 2SC1740S |
| 描述与应用 |
通用晶体管 特点 1）很棒HFE线性。 2）补充2SC2412K/2SC4081/2SC4617/2SC1740S |
