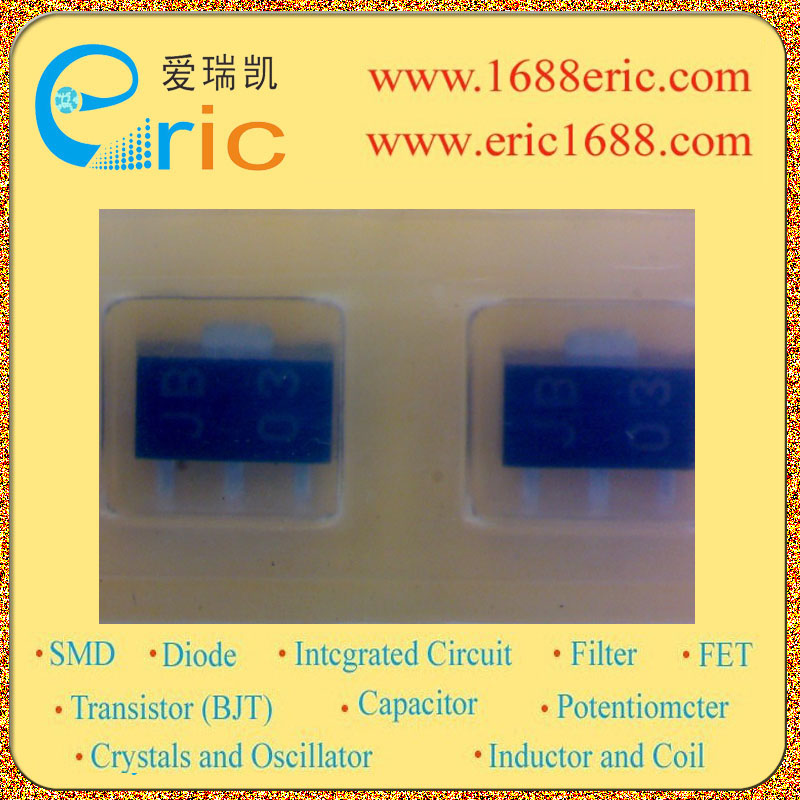

03P2J JB 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
200V |
| 通态平均电流IT(AV)
Average on-state current |
0.3A |
| 通态最大电流IT(RMS)
RMS on-state current |
0.47A |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
200μA |
| 保持电流IH
Holding current |
5mA |
| 峰值通态电压VTM
On-state voltage |
1.6V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
10μA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
6A |
| Description & Applications |
All diffused type scr power mini mold . POWER MINI MOLD .Cassette tape recorder .Solid-state relay Strobo flasher .Ground fault detector .Automobile equipment . World Standard Miniature Package:SOT-89 High. Anode to Cathode Voltage. |
| 描述与应用 |
全扩散型可控硅电源小型模具。 功率迷你模具 ,用于盒式磁带录音机 ,固态继电器 ,频闪闪光器 接地故障检测 ,汽车设备。 世界标准小型封装：SOT-89, 高阳极至阴极电压。 |
